Most engineers who need a circuit that bends reach for flexible circuitry first. The harder question comes a step later, when the design also needs component support, connector stability, or selective stiffness in certain zones. At that point, two options look almost identical on a drawing: a true rigid-flex PCB or a flex PCB with a rigidizer bonded to the areas that need support. They solve a similar-sounding problem, but they are built differently and priced differently, and they fail in different ways.
A rigid-flex PCB is one integrated board where rigid FR-4 sections and flexible polyimide sections are laminated into a single electrical stackup. A flex PCB with a rigidizer is still a flex circuit; the rigidizer is a piece of FR-4 or polyimide bonded to selected areas for mechanical support only. It adds stiffness, but it is not part of the electrical structure and does not turn the board into a rigid-flex board.
The sections below compare construction, cost, stackup, materials, design rules, and reliability so you can pick the right one before you commit to tooling.
How the two constructions actually differ
The core difference is integration. A rigid-flex PCB is designed and fabricated as one board with both rigid and flexible zones in the same stackup, electrically connected throughout. A flex PCB with a rigidizer starts as a complete flex circuit, and the rigidizer is added afterward as a mechanical reinforcement on top of that finished flex.
A rigid-flex PCB is a hybrid. Rigid and flexible layers are built as one multilayer structure, so the transitions between stiff zones and bend zones are engineered as part of the design. Layer registration, bonding control, coverlay management, and bend-area geometry all become critical fabrication variables. The result is a board that folds into a three-dimensional shape while keeping rigid zones stable enough for heavy components.
A flex PCB with a rigidizer takes a different path. The base circuit is fabricated as a normal flex board, then a stiffening material is bonded to specific locations. Those zones become locally rigid, which helps during pick-and-place, reflow, and connector insertion. Everything else stays as thin and flexible as the original flex design. The rigidizer sits outside the electrical stackup, so it carries no traces and does not change the circuit’s electrical behavior. For a full view of how these boards are built to spec, see the work of a rigid-flex PCB manufacturer supplier.
What a rigid-flex PCB is
According to SLPCBA’s rigid-flex product page, the rigid sections are built from FR-4 fiberglass to support dense ICs and standard interfaces, while the flexible sections use ultra-thin polyimide film and rolled copper to bend and twist inside tight enclosures. The layers are permanently laminated together, which removes external cables, wire harnesses, and board-to-board connectors. Because the rigid and flex areas share one continuous stackup, the board is a single part number. The trade-off is that once the stackup is fixed, changing the flex zone means going back through lamination.
What a flex PCB with a rigidizer is
A flex PCB with a rigidizer keeps the base construction simple. The flex circuit carries all the routing, and the rigidizer is bonded to selected areas once the flex board is finished. It supports component placement or gives a connector a flat, stable surface to plug into, keeping most of the size and weight advantages of flex circuitry without the complexity of a full rigid-flex build.
What a stiffener does (and does not do)
A stiffener is a bonded piece of material that makes a local area of a flex circuit rigid.
- It does provide mechanical support for connectors, surface-mount parts, and plated through-holes.
- It does help the board stay flat during assembly, which improves placement accuracy.
- It does relieve stress around a ZIF connector or solder joint that would otherwise take the load of the bend.
- It does not carry electrical routing.
- It does not create a true rigid multilayer section or turn a flex PCB into a rigid-flex PCB.
That last point is where a lot of designs go wrong. A stiffener changes the mechanical behavior of a small area. It does not give you the fabrication advantages of a real rigid section, especially when the design needs dense vias or high layer counts.
Where a rigid-flex PCB wins
Rigid-flex wins when the design needs an integrated three-dimensional structure, dense routing in the stiff zones, and the highest reliability. Its strongest advantage is that it removes connectors and solder joints, which are the most common failure points in vibration-heavy systems.

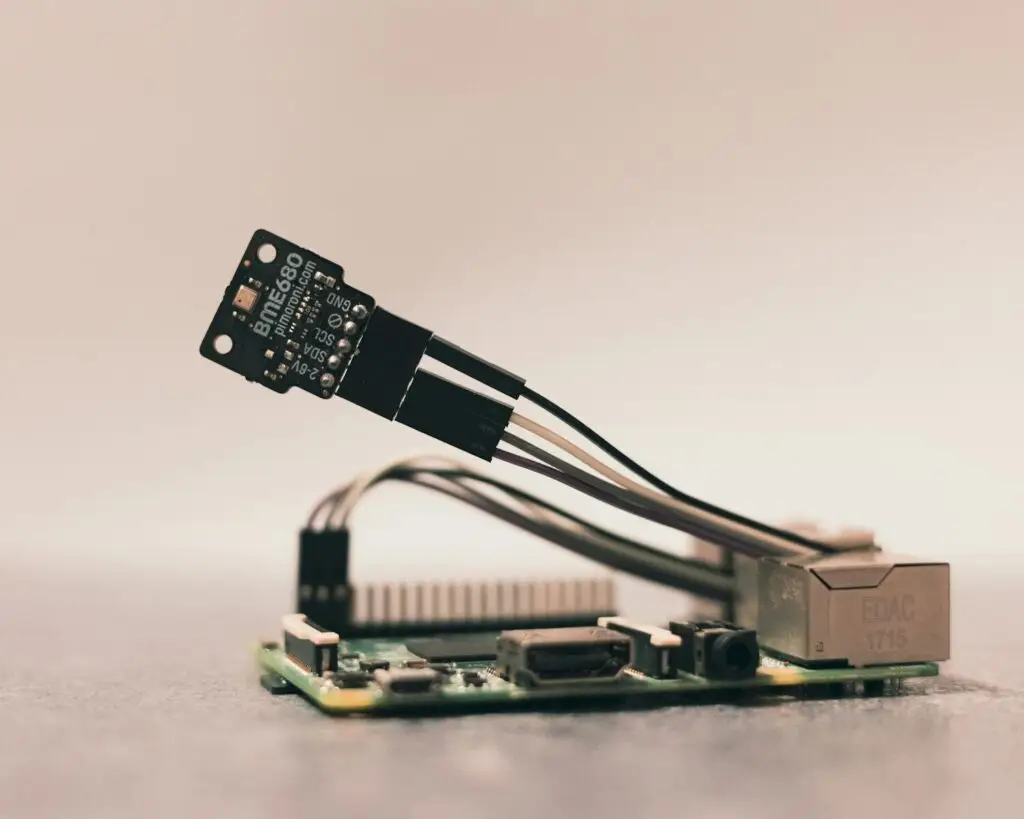

Compact devices often need several rigid boards connected by cables. Each connection adds a connector, a solder joint, and a point where vibration or thermal cycling can cause a failure. A rigid-flex board replaces all of that with continuous traces running from one rigid zone to the next, cutting parts and assembly steps while removing weak points.
Rigid-flex also handles complexity that flex alone struggles with. Multilayer designs with dense routing, HDI features, microvias, via-in-pad, and fine-pitch breakout are far easier to build in a true rigid section, where the structure stays stable during fabrication. Sequential lamination, laser drilling, and tight registration are all more practical in rigid layers than in a flex board with a rigidizer attached. Common applications include medical devices, aerospace and defense electronics, industrial controls, compact sensors, wearables, and folding high-end consumer electronics.
Where a flex PCB with a rigidizer wins
A flex PCB with a rigidizer wins when the circuit is mostly a simple flex design and only a few areas need localized support. It offers most of the size and weight benefits of flex at a much lower cost than a true rigid-flex build.
Many products do not need a fully integrated rigid-flex architecture. A display interconnect needs a flat area behind the contact fingers so it can slide into a ZIF socket. A battery connection needs a stiff zone so the connector does not flex during insertion. A printer head needs localized support during assembly. In each case, the circuit itself is straightforward.
Rigidizers also help during manufacturing. A flex board that stays flat in the placement and reflow areas is easier to process, which reduces handling errors and improves first-pass yield. The pattern here is the opposite of rigid-flex: the design is primarily flex, only a few locations need stiffness, and cost control matters.
Cost: board price vs. total system cost
Rigid-flex costs more at the board level, often two to four times a comparable flex design, because of hybrid materials, multiple lamination cycles, and tighter process control. A rigidizer usually adds only a modest percentage to a flex board’s cost. But the lowest board price does not always mean the lowest system cost.
The rigid-flex premium comes from real work: more complex stackup design, tighter tolerance control, more fabrication steps, and more engineering and inspection time. A flex PCB with a rigidizer avoids most of that structural complexity, so it stays cheaper at the part level. At the system level, the comparison shifts. A rigid-flex board can reduce total cost by eliminating connectors, cables, and hand assembly and by replacing several boards with one. When a design removes two connectors and an assembly step, the savings can offset the higher board price, especially as volume grows and connector costs and labor start to dominate.
| Cost factor | Flex PCB with rigidizer | Rigid-flex PCB |
| Board fabrication | Lower; flex base plus a stiffener | Higher hybrid stackup and more process steps |
| Material | Standard flex materials plus stiffener | Hybrid FR-4 and polyimide stackup |
| Manufacturing complexity | Simpler lamination and registration | More complex lamination and tighter control |
| Assembly | May still need connectors or cables | Can remove connectors and assembly steps |
| Typical lead time | Shorter | Longer |
| Total system cost | Best for cost-sensitive designs with local support | Can be lower when it removes interconnects and labor |
When the higher board price pays back
The premium pays back when the rigid-flex board removes real cost elsewhere. Look for two or more of these conditions:
- The design needs two or more rigid sections connected permanently.
- Connectors, cables, or headers would otherwise appear in the bill of materials.
- Assembly labor is a significant share of total cost.
- Vibration, shock, or thermal cycling puts the interconnect joints at risk.
- The enclosure volume is tight enough that a smaller, folded board reduces the housing.
If none of these apply, a stiffened flex board usually delivers a lower total cost. Volume matters too: at low volumes, rigid-flex setup and engineering costs spread over fewer units and are harder to justify, while at higher volumes the connector and assembly savings close much of the gap.
Rigid-flex PCB stackup and material choices
A rigid-flex stackup combines FR-4 rigid zones for component mounting with polyimide flex zones for bending. The materials that matter most are the copper type, the polyimide core, and the adhesives used at the rigid-flex interface.
Copper choice comes first. Rolled annealed (RA) copper has a grain structure aligned with the bend axis and far better fatigue performance, which is why it is standard in dynamic flex zones. Electro-deposited (ED) copper is cheaper and holds fine trace definition well, so it suits rigid sections and static flex areas.
The base material follows. Adhesiveless polyimide, where the polyimide is cast directly onto copper foil, removes the adhesive interface between layers. That reduces Z-axis expansion and improves thermal reliability in flex zones that bend repeatedly. For rigid zones, standard FR-4 or high-Tg FR-4 provides the mechanical support and routing platform. Stiffeners, where used, come in several materials for different jobs.
Materials table
| Material | Typical role | Notes |
| Rolled annealed (RA) copper | Bending flex zones | Higher ductility, better fatigue life |
| Electro-deposited (ED) copper | Rigid sections and static flex | Cheaper, good fine-line definition |
| Polyimide (PI) film | Flex dielectric | High flex endurance, high-temperature stability |
| Adhesiveless polyimide | Dynamic flex cores | No adhesive interface, lower Z-axis expansion |
| FR-4 | Rigid zones | Mechanical support and component platform |
| FR-4 stiffener | Flex support zones | Cost-effective, common behind connectors |
| Polyimide stiffener | Thinner flex support | Better thermal match to the flex base |
| Stainless steel stiffener | Support plus shielding | Combines stiffness with EMI protection |
Rigid-flex PCB design guidelines
Most rigid-flex failures trace back to design decisions in the bend zones and the rigid-flex transition. Following IPC-2223 bend radius rules and keeping vias and pads out of bend areas prevents the cracking and delamination that dominate field failures.
Bend radius is the single most important mechanical parameter. It is measured from the bend axis to the inner surface of the flex, and smaller radii put more strain on the outer copper layers.
The IPC-2223 design standard for flexible and rigid-flex printed boards sets the bend radius rules that most fabricators work to. Static bends, where the board is folded once during installation, need far less radius than dynamic bends, where the board flexes continuously in service.
Bend radius by flex type
| Flex type | Static bend radius | Dynamic bend radius |
| Single-sided | About 3x flex thickness | About 20x flex thickness |
| Double-sided | About 4x flex thickness | About 30x flex thickness |
| Multilayer (3+ layers) | About 6x flex thickness | Not recommended for dynamic use |
A few more design rules keep the bend zones reliable:
- Keep vias and pads out of bend areas. They act as rigid stress risers and crack the copper.
- Keep vias a safe distance from the rigid-flex transition zone, where stress concentrates.
- Route traces perpendicular to the bend axis, and use curved traces instead of 90-degree angles.
- Stagger traces on opposite sides of double-sided flex to balance stress across the neutral axis.
- Extend the coverlay past the outer traces so the copper edge is protected.
- Keep components clear of the rigidizer edge on a stiffened flex board, where the transition from stiff to flexible creates a stress line.
Reliability and manufacturing considerations
Rigid-flex generally offers better long-term reliability in complex assemblies because it removes connectors and solder joints. A stiffened flex board is highly reliable in static applications, but the adhesive holding the stiffener can delaminate under harsh thermal cycling or repeated shock.
In vibration-heavy and harsh environments, connectors are the leading failure point. Rigid-flex eliminates them, replacing discrete joints with continuous traces. That is why high-reliability programs, from life-support medical devices to aerospace and defense electronics, tend to specify rigid-flex.
Stiffened flex circuits are reliable when the application matches the technology. In static-flex designs, where the board bends once and then stays fixed, a stiffened flex board performs well for years. The risk shows up in harder conditions: the adhesive between the stiffener and the flex base can fail under extreme thermal cycling, and the line where the stiffener ends is a stress point that tears if bent sharply.
Performance classes clarify the manufacturing side. Under IPC-6013, the qualification and performance specification for flexible and rigid-flex boards, Class 1 covers general electronics, Class 2 covers dedicated service electronics like industrial and automotive equipment, and Class 3 covers medical, aerospace, and military use. Class 3 adds flex-cycle validation, tighter peel strength requirements, and stricter acceptance criteria. When you quote a rigid-flex project, name the IPC-6013 class on the purchase order so the fabricator tests to the right bar.
How to choose between the two
Choose rigid-flex when the design needs an integrated rigid-and-flex structure, dense routing in stiff zones, and maximum reliability. Choose a flex PCB with a rigidizer when the design is mostly flex and only a few areas need localized support.
| Design priority | Better fit |
| Integrated 3D structure with multiple rigid zones | Rigid-flex PCB |
| Dynamic, repeated bending | Rigid-flex PCB |
| High layer counts, HDI, dense via structures | Rigid-flex PCB |
| Connector elimination and vibration resistance | Rigid-flex PCB |
| Lowest board-level cost | Flex PCB with rigidizer |
| Localized stiffness behind a connector or component | Flex PCB with rigidizer |
| Simple flex circuitry, static flex-to-install | Flex PCB with rigidizer |
| Short lead time and low engineering overhead | Flex PCB with rigidizer |
A practical way to decide: start with the flex PCB with a rigidizer. It covers most designs that only need stiffness in a few spots. Move to rigid-flex when the design needs multiple rigid sections connected permanently, when connectors or cables appear in the bill of materials, when the routing is dense enough to need HDI, or when the environment is harsh enough that interconnect joints are a real risk.
FAQ
Can a flex PCB with a rigidizer replace a rigid-flex PCB?
No. A rigidizer adds mechanical support only, so it cannot replicate the integrated rigid and flexible stackup of a true rigid-flex board. If the design needs multiple rigid zones connected through the same continuous circuit, dense vias, or HDI routing, a stiffened flex board will not meet the requirement. The rigidizer helps a flex circuit stay flat and stable, but it does not change the board’s fundamental construction.
Does adding a stiffener change the electrical performance of a flex PCB?
It generally does not. The stiffener sits outside the electrical stackup and carries no traces, so it does not affect impedance, signal routing, or current capacity. Its only role is mechanical. The one thing to watch is placement: a stiffener near a bend zone changes how the board flexes locally, so keep it clear of any area that needs to bend, and design a generous radius around the stiffener edge.
What is the minimum bend radius for a rigid-flex PCB?
It depends on the flex layer count and whether the bend is static or dynamic. General guidance is around 3x to 6x the total flex thickness for a static bend, rising to 20x or more for a dynamic bend that flexes repeatedly in service. The higher the layer count, the larger the required radius, and multilayer flex is normally limited to static bends only. Confirm the exact ratio with your fabricator before layout.
