Mechanical keyboard builders run into a familiar problem once a board ages or a project moves past the prototype stage. The GD75RE is a 75 percent layout board, and like any production keyboard, it depends on a single printed circuit board to register every keypress, drive the lighting, and talk to the host computer. When that board fails, goes out of stock, or simply no longer fits the layout you want, the question stops being academic: you need a replacement or a custom solution, and you need it without guessing your way through a supplier list.
You get a GD75RE keyboard PCB by choosing one of three routes: buy a direct replacement from the original supplier, design your own board and have it fabricated, or hand your design files to a contract manufacturer that runs both fabrication and assembly. Most builders who want a dependable result pair a proven layout with a custom PCB manufacturing partner that can produce the bare board and populate it in one pass.
The sections below walk through each route, the files you need, the materials that matter for a keyboard, and how to brief a manufacturer so you end up with a board that works on the first try rather than a box of parts you have to solder yourself.
What the GD75RE keyboard PCB does and why you might need one

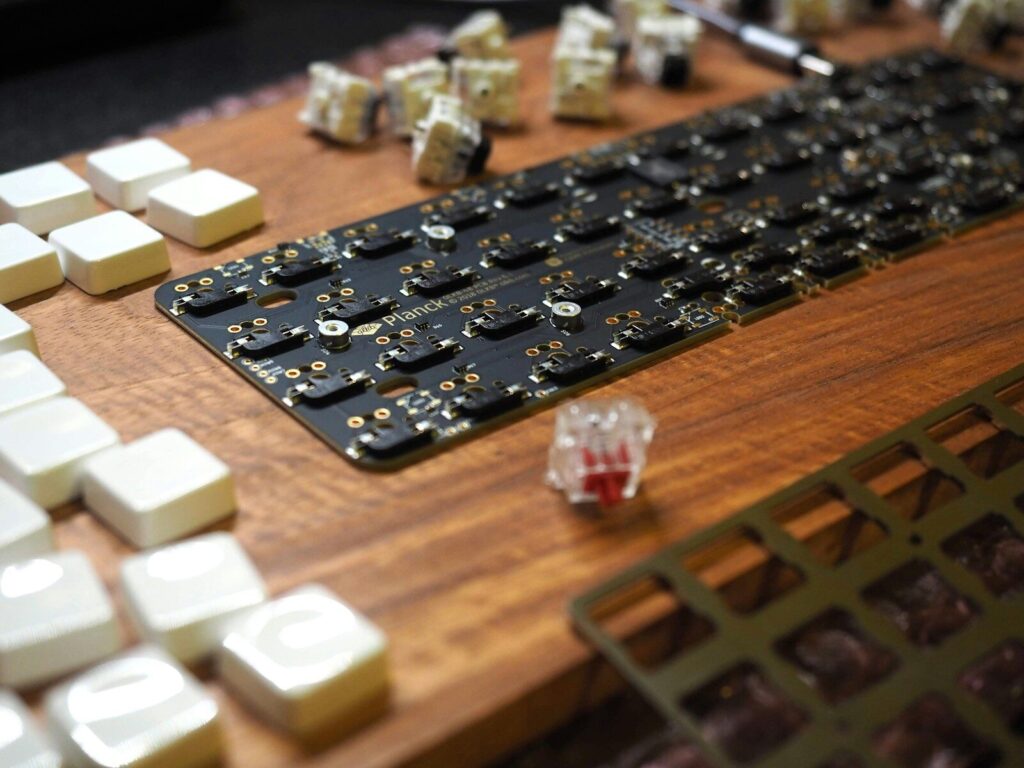

The GD75RE PCB is the control layer of the keyboard: it scans the switch matrix, hosts the microcontroller and firmware, routes power to the LEDs, and converts keystrokes into a USB signal the computer understands. You need a new one when the original is damaged, discontinued, or no longer matches the layout, switch type, or feature set you want.
A keyboard printed circuit board is easy to describe and surprisingly easy to get wrong. Every key sits at the intersection of a row and a column in a matrix. The microcontroller pulses one line, reads the others, and works out which switch closed. A diode on each key stops presses from ghosting. A small controller runs firmware such as QMK or VIA so you can remap keys without ever touching the hardware. None of that is exotic, but it has to be laid out cleanly or you end up with dead keys, chattering switches, or a board that will not enumerate when you plug it in.
People look for a GD75RE PCB for a few concrete reasons. The original supplier stopped selling spares. A spilled drink killed the controller. They want hot-swap sockets instead of soldered switches. Or they are building a clone and need a board that fits the same case and plate. In each case the goal is the same: a board that drops into the existing case and works the day it arrives, without a second revision.
Route one: buy a direct replacement PCB
The fastest path is to source a direct replacement from the original vendor or an authorized reseller, because the footprint, connector, and firmware already match the GD75RE case and plate. This works best when the model is still in production and you only need a like-for-like swap.
Buying the original part removes most of the risk. The mounting holes line up, the USB port sits where the case expects it, and the firmware already supports the layout. If the board is current, this is the obvious move, and it keeps you out of the design tool entirely.
What to verify before ordering a replacement
Even a direct replacement deserves a quick check before you pay. Confirm the revision number, because a later PCB may move a connector or change the daughterboard cable. Match the switch support: some GD75RE revisions ship with hot-swap sockets, others expect soldered switches, and the two are not interchangeable. Check the daughterboard and ribbon cable, since those are easy to overlook and painful to discover missing after the board arrives. Finally, confirm the firmware tool, whether it is VIA, QMK, or a proprietary flasher, so you can remap without hunting for binaries.
If the original is out of stock or discontinued, a replacement alone will not solve the problem, and that is where the next two routes matter. Holding out for a part that no longer exists wastes a project, so most builders move to design or contract manufacturing at that point.
Route two: design your own keyboard PCB
You design your own PCB when no off-the-shelf board fits your layout, switch choice, or feature list, and you are willing to learn schematic capture and layout to get exactly what you want. The work splits into three parts: the schematic, the physical layout, and the firmware that runs on the microcontroller.
Designing a keyboard board is more approachable than it looks, and the tooling is free. The hard part is discipline: a clean schematic saves you from a useless board later, and a careful layout saves you from a board that works on the bench but fails in the case. Good printed circuit board design is mostly about removing surprises before they are manufactured into copper.
Schematic and layout
The schematic defines the switch matrix, the diode for each key, the microcontroller, the USB interface, and any extras such as rotary encoders or RGB LEDs. Open-source tools let you draw this and export the manufacturing files at no cost. The layout then places every component, routes the traces, and sets the board outline so it drops into the GD75RE case. Tracing the matrix cleanly, keeping USB differential pairs short, and leaving room for a stable ground plane are the details that separate a board that works from one that misbehaves under real typing.

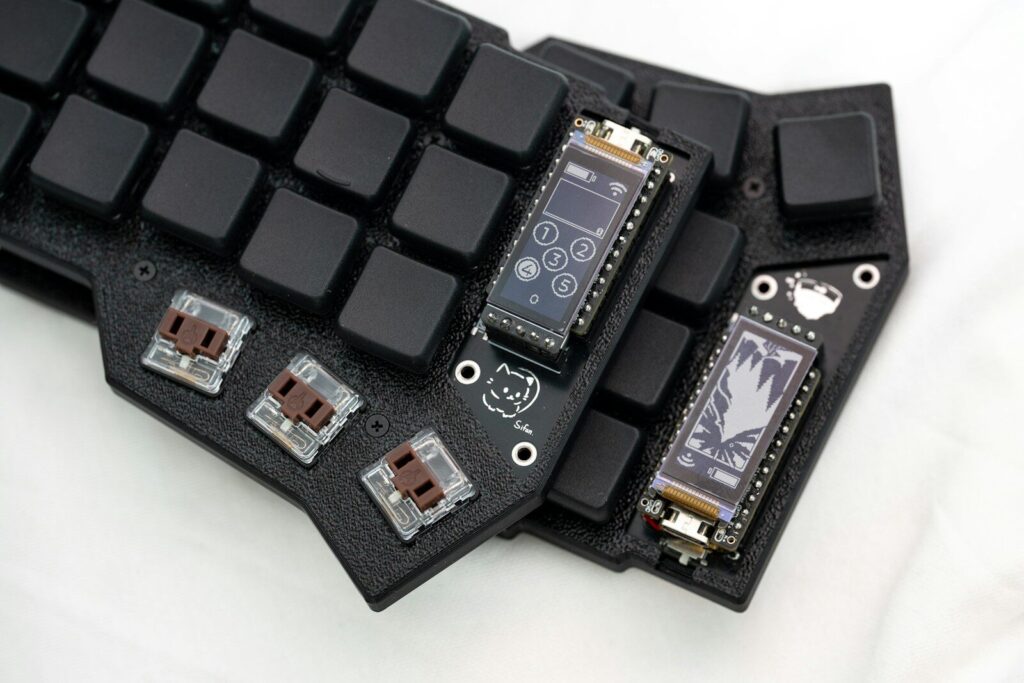

Firmware and microcontroller choice
The microcontroller does the actual scanning and USB reporting. The community standard is QMK, which runs on a wide range of inexpensive controllers and gives you layers, macros, and remapping through VIA. Pick a controller with enough pins for your matrix and native USB support. A common choice is an ARM-based part with a proven QMK port, because it flashes cleanly and holds the firmware through power cycles. Get the firmware mapping right before you order, because a board with the wrong pin assignments is just an expensive coaster that lights up but types nonsense.
This is the point where your design stops being a concept and becomes a set of files a factory can build, inspect, and ship back to you as a finished object.
Route three: work with printed circuit board manufacturers for a custom board
You send your finished design to a contract manufacturer when you want the bare board fabricated and the components placed for you, which is the normal path for anyone who is not hand-soldering a prototype. A capable supplier turns your Gerbers, bill of materials, and placement data into a finished, tested keyboard PCB.
Most builders do not own a pick-and-place machine, and they should not need one. Once your design is locked, a manufacturer handles the physical production. The term “printed circuit board manufacturers” covers shops that range from quick-turn prototype houses to full-scale assembly lines, and the right one depends on whether you need five boards or five thousand. For a keyboard project, a turnkey shop that does both fabrication and turnkey PCB assembly is usually the cheapest path to a working result.
Files you must prepare
A manufacturer cannot build from good intentions. You need a complete package: Gerber files for each copper and silkscreen layer, an NC drill file for the holes, a bill of materials listing every component with its footprint and value, and a pick-and-place file that tells the machine where each part goes. Add a readme that notes stack-up; impedance requirements, if any; and any parts that are hand-placed. Missing or mismatched files are the leading cause of delayed orders, so a thorough package pays for itself the first time you avoid a clarification email.
What a good manufacturer handles
Beyond fabrication, a strong partner sources the components, runs solder paste and reflow, places parts, and inspects the result. Many offer automated optical inspection and functional testing so a dead microcontroller or a bridged pad gets caught before shipping. For a keyboard, functional testing can be as simple as confirming the board enumerates and every key registers. Slpcba supports this kind of turnkey work, taking a design from Gerbers to a populated, tested board so you are not soldering diodes at midnight or wondering whether a cold joint will fail in a month.
Choosing printed circuit board material for a keyboard
For a keyboard PCB you almost always want standard FR4 fiberglass at 1.2 or 1.6 millimeter thickness with 1 ounce of copper because it is cheap, stable, and rigid enough to sit flat in the case. Exotic materials only make sense for high-frequency or high-temperature jobs, which a keyboard is not.
The printed circuit board material decision is simpler than it sounds, but it is worth getting right so the board feels solid and survives assembly and repeated teardown. A rigid PCB built on FR4 is the default for good reason: it is predictable, well supported by every shop, and tolerant of the hand assembly a hobbyist might still do.
| Material | Typical thickness | Best for | Notes |
| FR4 (standard) | 1.2 to 1.6 mm | Nearly all keyboards | Low cost, good rigidity |
| FR4 (thin) | 1.0 mm | Tight cases, flex builds | More flexible; needs care in handling |
| Aluminum core | 1.5 mm | High-power LED boards | Overkill for switches |
| Polyimide (flex) | 0.1 to 0.2 mm | Foldable or gasket sections | Costly, special process |
Copper weight matters too. One ounce of copper handles keyboard currents without issue. Two-ounce copper is common on boards with heavy RGB loading, but it costs a little more and needs wider trace spacing. Surface finish is the last call: HASL is cheapest, ENIG is flatter and better for fine-pitch parts, and it is the usual pick when a board carries a small microcontroller in a tight package. For a GD75RE-style board with a compact controller, ENIG is worth the small premium because it makes placement yield better.
Understanding printed circuit board assembly for keyboards
Printed circuit board assembly is the step that turns a bare board into a working keyboard: components get placed and soldered, then the board is tested. For a GD75RE-style board, that means the microcontroller, diodes, resistors, switches or sockets, USB port, and any RGB LEDs all end up firmly attached and electrically correct.
The phrase printed circuit board assembly covers both how parts are mounted and who mounts them. Keyboards use a mix of surface-mount and through-hole parts, and understanding the split helps you design a board that is cheap and reliable to build rather than one that looks fine in the editor and falls apart on the line.
Components typically assembled
A keyboard board carries a predictable set of parts. The microcontroller sits at the center. Every key gets a diode, usually a small surface-mount part. RGB LEDs, when present, line the edge and pull the most current on the board. The USB connector is the most abused part on the keyboard, so it is often through-hole or reinforced surface-mount for mechanical strength. Hot-swap sockets, if you chose them, are larger through-hole parts that let you change switches without a soldering iron and are worth the extra placement cost for anyone who swaps frequently.
How assembly is run
Most production uses surface-mount technology placed by machine, then reflow soldered in an oven. Through-hole parts such as the USB port or sockets are added after, either by selective wave soldering or by hand. A printed circuit board (PCB) that was designed with assembly in mind keeps parts on one side where possible, uses standard footprints, and avoids parts so tiny that placement yields suffer. Slpcba runs this flow for keyboard and other small boards, which means your design goes from bare substrate to a finished, testable product without you managing each step or learning to read a reflow profile.
How to evaluate manufacturers and get a quote
You evaluate a PCB partner by checking their capabilities, certifications, lead time, and how clearly they quote; then you send a complete file package to get a real number. The fastest way to a trustworthy price is to request custom PCB quotes from a shop that handles both fabrication and assembly.
Not every shop is a fit. A prototype house may quote cheap bare boards but stall on assembly. A high-volume line may ignore an order for ten pieces. The sweet spot for most keyboard work is a turnkey supplier that treats small batches as normal and does not penalize you for not ordering ten thousand units.
Questions to ask before you commit
Ask what stack-ups they support and whether ENIG is standard. Ask about their smallest placeable package, because a tiny microcontroller tests the limit of cheaper lines. Ask whether they source hard-to-find parts or expect you to consign them, since component sourcing is where timelines quietly slip. Ask about testing: do they just ship bare boards, or do they verify the assembly functions? Finally, ask about lead time for both prototypes and production, because a board that arrives after your project has lost momentum is no help to anyone.
Certifications matter for some buyers. ISO 9001 signals a documented quality system. IPC-A-610 is the accepted workmanship standard for assembled boards, and a shop that follows it is less likely to ship cold solder joints or lifted pads. Slpcba lists these capabilities openly, which makes it easier to brief the team and move from design to delivery without surprises or a second round of excuses about why the first batch failed.
Common mistakes when sourcing a keyboard PCB
The usual failures are a mismatched case footprint, a wrong diode orientation in the schematic, missing placement files, and choosing a manufacturer that cannot assemble the fine-pitch parts a keyboard needs. Each of these is avoidable with a short checklist before you order.
A board that does not fit the case is the most expensive mistake, because everything else about the design may be perfect and still useless. Always confirm the board outline, mounting hole positions, and switch spacing against the GD75RE plate before you send files. Diode orientation is the second classic error: flip it in the schematic and every key reports backward or not at all. Third, a bare Gerber set without a bill of materials forces the shop to guess, which it will not do in your favor. Fourth, a shop that only does fabrication leaves you hand-placing a microcontroller, which is fine for one board and miserable for twenty.
What a realistic cost and timeline looks like
Expect prototype pricing in the low tens of dollars per board for small batches of a simple two-layer keyboard PCB, rising with layer count, ENIG finish, and assembly, with prototype lead times from a few days to a couple of weeks depending on the shop and component sourcing.
The table below gives a rough picture. Numbers vary by region and volume, but they show how the choices stack up so you can plan instead of hoping.
| Option | Typical unit cost (small batch) | Lead time | Best when |
| Bare board, FR4, 2-layer | 2 to 8 | 3 to 7 days | You will hand-assemble |
| Bare board, ENIG | 4 to 12 | 5 to 10 days | Fine-pitch parts present |
| Turnkey assembly | 15 to 40 | 7 to 20 days | You want finished boards |
| High-volume production | Negotiated | 3 to 6 weeks | Hundreds or more |
The takeaway is that design effort costs nothing but time, while assembly and finish drive most of the price. A clean design with standard parts keeps both the quote and the lead time down, and it gives the manufacturer fewer reasons to come back with questions that stall your order.
FAQ
Can I use a universal keyboard PCB instead of the GD75RE original?
A universal or hot-swap PCB only fits if its outline, mounting holes, and switch spacing match the GD75RE case and plate. Many 75 percent boards share a similar footprint, but small differences in screw positions or USB cutouts will stop a generic board from dropping in cleanly. Measure the original before assuming a swap will work, and treat any claim of drop-in compatibility as something to verify against your specific revision.
How much does a custom keyboard PCB cost to manufacture?
For a small prototype batch, a simple two-layer board runs a few dollars each bare, rising to roughly fifteen to forty dollars each once assembly is included with ENIG finish and component sourcing. Volume, layer count, and component choice move the price, so the reliable number comes from sending a complete file package to a manufacturer for a quote rather than guessing from a forum post.
What files do I need to send to a PCB manufacturer for a keyboard board?
You need Gerber files for every layer, an NC drill file, a bill of materials with footprints and values, and a pick-and-place file for assembly. Add a short readme noting thickness, finish, and any hand-placed parts. A complete package is what lets a shop quote accurately and build the board without follow-up questions that push your delivery date back.
