Opening a carton of finished boards and finding the legend half gone is one of the more irritating moments in a hardware build. Reference designators sit beside empty footprints, a polarity mark that was obvious in CAD has vanished, and the first instinct is to blame whoever ran the panel. Most of the time the decision was made long before any ink touched the board, somewhere between the design file and the CAM workstation. A custom PCB manufacturing partner can only print what the released data tells it to print, and the gap between the CAD view and the exported fabrication package is exactly where legends go missing.
A PCB missing a silk screen means the legend layer did not survive the trip from design data to the finished board. The usual causes are automatic clipping where legend overlapped solder mask openings or exposed copper, an incomplete or misnamed overlay file in the fabrication package, text drawn below the fabricator’s printable limit, and ink that printed but failed to adhere. Missing a legend is not an electrical defect by itself, because copper, mask, drilling, plating, and surface finish still decide how the board behaves. It turns into a manufacturing risk the moment a mark is needed for placement, polarity, testing, traceability, or compliance.
This guide separates those four causes, shows how to tell them apart on real boards, and lists the design parameters that keep legend marks where they belong.
What a missing silk screen actually means
Silkscreen, also called the legend or overlay, is a printed marking layer that sits on top of the solder mask. It carries no copper and no current. When someone says a board is missing its silk screen, they usually mean one of four things: the entire overlay is absent, one side is absent, specific marks were clipped away, or the marks printed but are too faint to read.
The distinction matters because the fix is different in each case, and because printed circuit board material and process choices set the boundaries. Legend ink is non-conductive and was never intended to sit over a solderable surface. Board shops treat it as a marking feature rather than as part of the circuit, and they will protect solderability ahead of protecting a label.
Silkscreen is a marking layer, not a functional layer.
Two layers do two different jobs. The solder mask is a protective coating that covers the copper you want isolated and leaves openings where solder has to land. The legend is printed over that mask to tell people what they are looking at.
In data terms, the top overlay is exported as the GTO layer and the bottom overlay as GBO. Both belong to the standard fabrication data set, alongside copper, mask, drill, and outline. A board can be electrically perfect and still ship without a single readable label, which is why “the board works” is not much of a defense when the customer asks for markings.

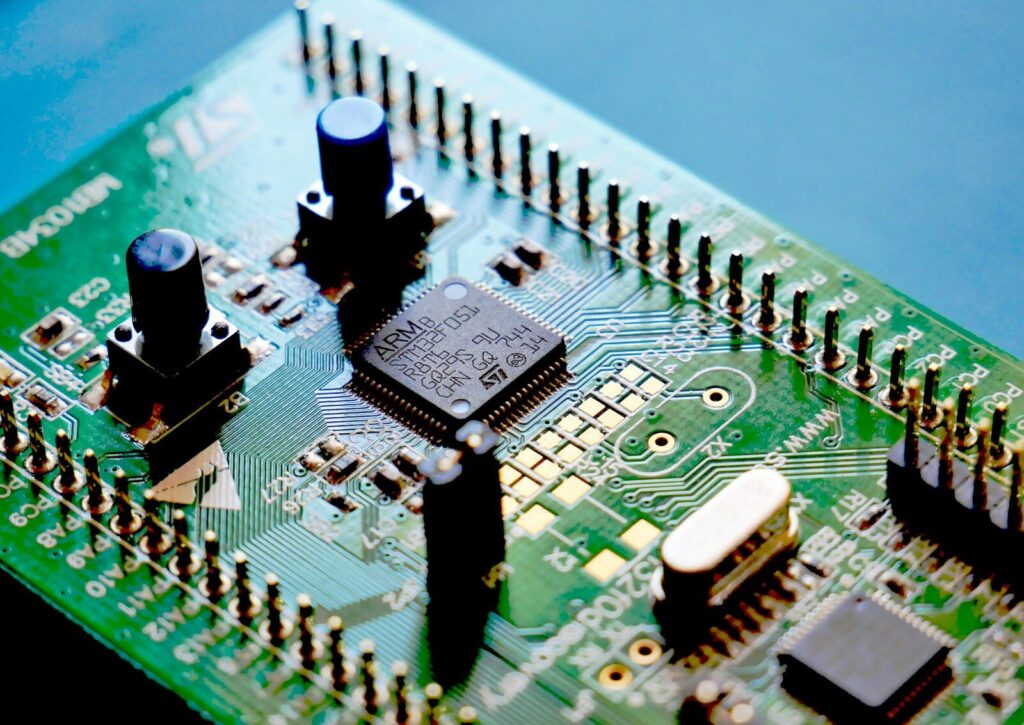

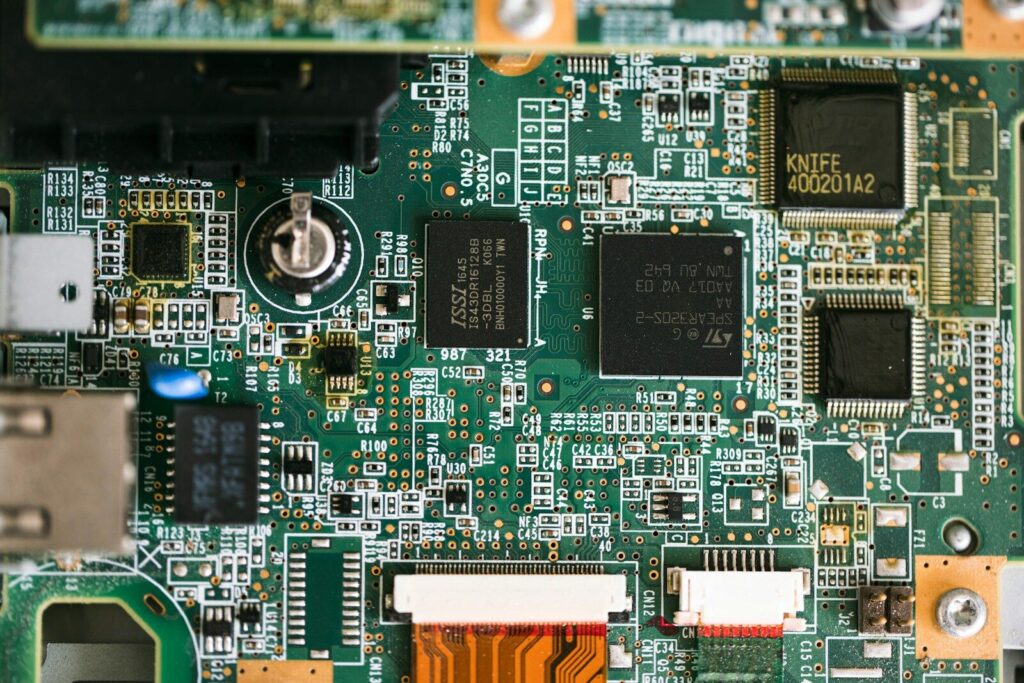

What the legend is expected to carry
- Reference designators that tie each footprint back to the schematic and the bill of materials
- Polarity marks for diodes, LEDs, and electrolytic capacitors
- Pin 1 indicators for ICs, including a visible marker outside the package outline
- Connector orientation and pin numbering for cables and headers
- Test point labels used during functional testing
- Board revision, part identification, and date codes for traceability
- Safety and regulatory marks where the product class requires them
- Customer or internal logos, when those are part of the approved artwork
Most of these are cosmetic until they are not. A missing revision letter is a paperwork annoyance. A missing polarity mark on a power board is a field failure waiting to happen.
Why the legend disappears from file to final cure
Four failure families account for almost every case of missing legend: export errors in the design data, automatic clipping during CAM, printing limits around fine text, and ink adhesion or curing problems. Each one leaves a different fingerprint on the finished board, which is why diagnosis should start with the data rather than with the panel.
None of this is exotic. All four are routine outcomes of the way printed circuit board design files travel into production, and all four are preventable before the order is placed.
Design file and Gerber export failures
The first place to look is the released data set, not the CAD project. A designer can see perfect text on screen while the export drops it entirely. The Gerber Layer Format Specification defines copper, mask, legend, and drill as separate image files, and the overlay files are only as complete as the export settings that produced them.
| What you see on the board | What to check first |
|---|---|
| No legend on one side | Whether the top or bottom overlay file was actually exported |
| No legend anywhere | Whether the overlay layer was empty, misnamed, or mapped to the wrong side |
| Text visible in CAD but absent in output | Whether the text objects were plotted at all |
| Bottom text mirrored or reversed | The export or view convention used for the bottom side |
| Markings present but the wrong revision | Whether two releases were mixed in the same job folder |
CAM clipping around solder mask openings
This is the most common single cause, and it is not a mistake. When legend artwork crosses a solder mask opening, a pad, a via, a gold finger, an edge contact, a test point, or a castellated hole, the shop clips it. Ink on a solderable surface interferes with wetting and can foul test probes, so the overlapping portion is removed.
From the shop’s point of view, that is manufacturability protection. From the buyer’s point of view, it is information that disappeared. The practical consequence is that a nominal clearance in the layout is not the same as the clearance the shop applies, because solder mask expansion pushes openings outward and eats into space the designer assumed was free. Industry design guidance in the IPC families places legend at least 0.2 mm from exposed copper and mask openings, but that figure is a floor rather than a promise. Ask what the specific plant uses.
Print process, ink, and curing problems
When the artwork is correct and nothing was clipped, the remaining causes live on the production line. Stroke widths below roughly 0.15 mm can print broken or skip altogether. Character heights under about 0.5 mm become unreadable on many mask colors. Low-contrast pairs such as yellow ink on a green mask survive printing and then fail inspection. Contamination on the substrate before printing weakens adhesion. Cure windows that are too short leave soft ink that rubs off during normal handling.
These failures look different from clipping. The clipped legend stops with a clean straight edge along the opening. Process failures leave faint, patchy, or flaking marks.
Does a missing silk screen matter? Risk depends on the application.
Sometimes it is a non-issue and sometimes it is a recall-class problem. Missing legend never changes the circuit, but it changes how easily people and machines can build, test, repair, and trace the assembly. Whether the outcome is acceptable depends on the product class and on which marks are gone.
| Application | Risk level | Main exposure |
|---|---|---|
| Simple through-hole prototype | Low | Build documents still guide placement. |
| Consumer electronics, dense SMT | Medium | Manual touch-up, inspection, and rework slow down |
| Industrial machinery and controls | Medium to high | Field service relies on board-level identification. |
| Power electronics | High | Polarity and voltage marks affect safe handling. |
| Medical devices | High | Documented acceptance criteria and traceability |
| Automotive and aerospace | High | Defined acceptance class, revision control, audit trails |
Where missing marks actually cost money
The first cost is time. Automated placement does not read ink; it works from centroid and bill of materials data, so a machine finishes the job whether a label is there or not. People are different. Operators verifying a first article, technicians chasing a fault, and inspectors confirming orientation all lean on the legend. Take it away, and every one of those steps needs a drawing open on a bench, which is slower and easier to get wrong. On a turnkey PCB assembly run, those minutes repeat across the whole batch.
The second cost is traceability. Revision letters, date codes, and serial marks are what let a manufacturer isolate a suspect lot months later. If the legend was clipped because it sat too close to a mask opening, the traceability data went with it.
The third cost is acceptance. Where a purchase drawing or an invoked standard defines required markings, their absence is a nonconformance no matter how well the board works. IPC-A-610 sets out visual acceptance criteria for electronic assemblies and is the document most customers point to when they ask about workmanship. The question is never whether the circuit functions, but whether the delivered board meets the criteria that were agreed upon.
How to diagnose the real cause instead of guessing
Work backwards from the finished board toward the source data and stop at the last stage where the mark still existed. That single step separates an intentional CAM clip from a print or cure failure, and it usually settles who pays for the correction.
- Open every overlay file in the released package in an independent viewer, not in the design tool and not from a screenshot.
- Overlay legend on solder mask, copper, and the board outline using a single origin. This shows precisely which marks sit inside a mask opening.
- Compare the result against the CAM report or clipping log. If the shop documents what it removed, the answer is usually on one page.
- Pull the production records for that lot: ink batch, cure parameters, registration data, and any adhesion check.
- Grade the finished boards themselves. A mark that stops along a straight line was clipped. A faint or broken mark was printed badly. A mirrored bottom label is an export problem.
| Fingerprint on the board | Most likely cause |
|---|---|
| Clean absence; the edge follows the mask opening. | CAM clipping |
| Faint, patchy, or broken strokes | Print or cure the problem. |
| Entire side blank | Export or layer mapping error |
| Bottom text mirrored | Export or view convention error. |
| Markings present but the wrong version | Mixed release files |
The reason to be systematic is money. A batch that looks like scrap on first inspection is often fine once you establish that the marks were removed deliberately rather than lost to bad curing. Keeping file review inside a documented workflow, along the lines described in this PCB Assembly Design Guide, turns a guess into a checklist.
Reprint, rework, or scrap: what you can do with finished boards
Most legend problems are recoverable if they are caught before the final cure. Once the ink is fully baked, chemical removal typically damages the solder mask underneath, and the realistic choices narrow to relabeling, documented acceptance, or remaking the batch.
| Situation | Practical option | Boundary |
|---|---|---|
| Ink still wet or uncured | Wash off and reprint. | Only before cure; ink matched to the mask system |
| Partially cured, small area | Local reprint or stencil touch-up | Appearance may differ from the original run |
| Fully cured, non-critical boards | Adhesive labels or accept as documented | Must be recorded in the acceptance paperwork |
| Fully cured, identity marks required | Remake the batch. | Applies where revision and traceability control |
Two things tilt the decision. The first is quantity, since hand-marking a prototype is normal and hand-marking ten thousand boards is not. The second is what the mark is for. A decorative logo can be accepted as missing. A pin 1 indicator that stops operators from reversing a part cannot.
The cheapest intervention is a pre-production plot. Ask the fabricator for a first article or a plotted legend image before the full run and compare it against the released data. Catching a clipped reference designator on a single plot costs nothing next to sorting a finished lot.
Design rules that keep the legend on the board
Treat legend as a manufacturable feature with its own minimums instead of free decoration on top of the layout. Text that respects the shop’s printable limits and stays clear of every mask opening survives production; anything else is subject to being clipped.
| Element | Commonly cited minimum | Why it matters |
|---|---|---|
| Character height, through-hole, and large packages | 1.0 mm (40 mil) | Keeps text readable during assembly and inspection |
| Character height, SMD 0805 and larger | 0.8 mm (32 mil) | Balances legibility against available space |
| Character height, 0402, and fine pitch | 0.5 to 0.6 mm (20 to 24 mil) | Only where the plant can hold fine resolution |
| Stroke width | 0.15 mm (6 mil) | Thinner strokes print broken or skip. |
| Legend to exposed copper or mask opening | 0.2 mm (8 mil) | Prevents clipping and solder interference |
| Character height against board thickness | 0.6 times board thickness | Keeps text proportional on thick boards |
| Contrast | White ink on a green or black mask | Low-contrast pairs print but fail inspection. |
Those figures are widely cited industry baselines drawn from the IPC design and acceptability families. They are starting points rather than a single vendor’s specification, and any given plant may be tighter or looser on a particular line. Confirm the numbers for the exact facility before you commit to a layout.
File-level checks before you release the job
- Export both overlay layers for double-sided boards and name them so their function is unambiguous
- Inspect the exported files in a standalone viewer, never in the design tool alone
- Overlay the legend on the mask and copper with one origin, then look for near misses rather than outright overlaps
- Confirm polarity, pin 1, connector direction, revision, and test point marks are readable
- Remove decorative text that crowds out functional marks
- Keep the board revision, file names, and fabrication drawing consistent with each other
- State in the fabrication notes which marks must not be moved or clipped
- Approve in writing any CAM change that alters the meaning of a mark
What to ask your manufacturer before the next order
Ask three things before the job is released: the minimum text height and stroke geometry the plant can hold, how legend is clipped against solder mask openings, and who signs off when a CAM change removes a mark. Those answers separate a supplier that prints whatever happens to survive from one that manages the outcome.
A short version of that list is worth carrying into every quotation request:
- What text height and stroke width can you print reliably on the mask color I have chosen?
- Do you clip the legend automatically, and can I see the clipping result before production starts?
- Can you supply a first article image when a mark carries polarity, safety, or traceability information?
- How do you handle two-sided legend and bottom-side mirroring?
- What ink system do you run, and which adhesion or cure checks go with it?
Slpcba runs every board through 100 percent electrical testing and automated optical inspection, builds to IPC Class 3 requirements for high-reliability applications, and specifies UL-certified material from vetted suppliers. Thermal cycling and stress testing cover the qualification side. Fabrication and assembly sit in the same factory, so legend decisions do not get lost in the handover between vendors, and a bill of materials plus fabrication package can be quoted within 24 hours.
If a legend question is holding up a release, send the fabrication package and stackup through and ask for a legend review against the plant’s PCB manufacturing capabilities before the panel is scheduled. Ten minutes spent on an overlay file is cheaper than sorting a finished lot.
Frequently asked questions
Is a missing silk screen a functional defect?
Not in the electrical sense. Legend ink is not part of any circuit, and impedance, plating, and surface finish are unaffected by its absence. It becomes a defect when the purchase drawing, the invoked standard, or the product class requires specific markings. In those cases the failure is a documentation and assembly nonconformance rather than a circuit fault, and it is judged against the agreed acceptance criteria instead of against the schematic.
Can silkscreen be reprinted after a board is finished?
Sometimes, and the window is short. Uncured ink can be washed off and reprinted with matching ink. Once the ink has fully cured, removing it usually attacks the solder mask underneath, so local reprinting becomes the practical option, and the appearance will vary from the original run. For non-critical boards, adhesive labels or documented acceptance as-is may be the sensible route. For boards that carry revision or traceability marks, remaking the batch is often cheaper than managing an unreliable legend for years.
Why did the manufacturer remove only part of my reference designator?
This is almost always clipping. Part of the text crossed a solder mask opening, a pad, or a via, so the CAM process trimmed the overlapping section to protect solderability and test access. The mark may also have fallen below the plant’s minimum printable geometry, in which case it disappears on its own rather than being cut. Either way the answer sits in the CAM report and the final fabrication data, not in the CAD layout. Ask for the clipping result before production whenever the mark carries a function.
