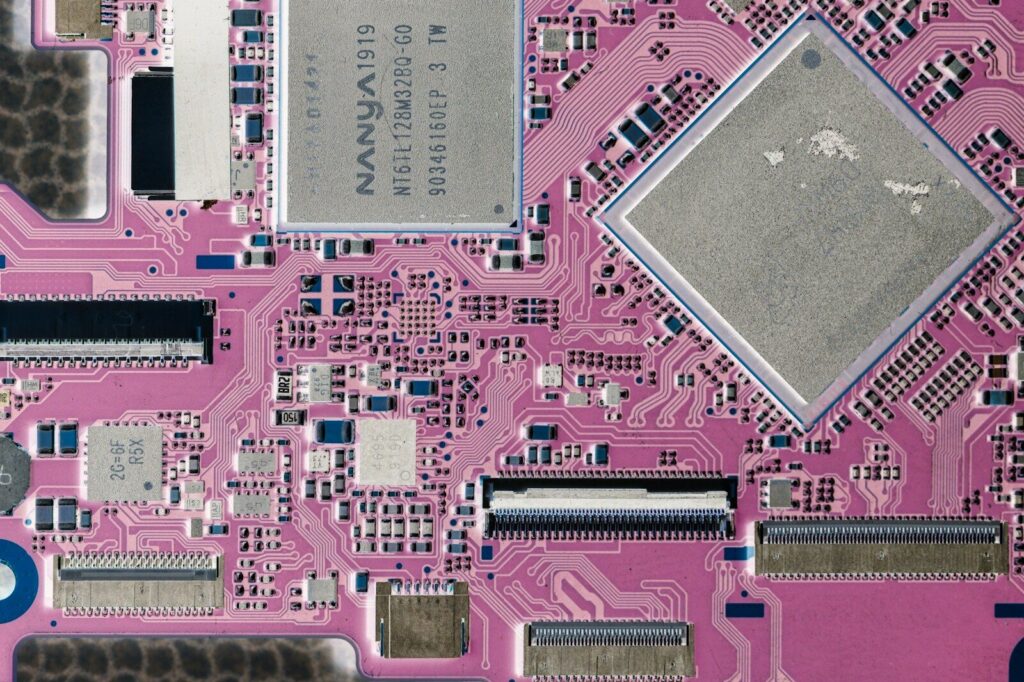

Most electronics projects ignore the board itself until a quote comes back higher than expected or a batch fails during reflow. The layers underneath the components decide how a board sheds heat, how clean a signal arrives at the far end, and what the finished assembly costs. PCB material selection sits between engineering and procurement, and the trade-offs get easier to defend once they are written down.
PCB material is the full set of layers inside a bare board: the substrate that provides insulation and mechanical support, the copper foil that carries current, the prepreg that bonds the layers together, the solder mask, and the surface finish. Choosing it means matching a small group of thermal and electrical properties to the assembly process and the operating environment, then confirming that the fabricator keeps the selected laminate in stock.
The sections below explain what each layer does, which properties screen out a material, and how to write a requirement that still means the same thing by the time production starts, whether the build runs through custom PCB manufacturing for prototypes or through a volume line.
What PCB material covers in a finished board?
A board contains four or five separate material layers, and only one of them is the substrate that most people mean when they say “PCB material.” Knowing which layer drives which behavior shortens every conversation with a fabricator.

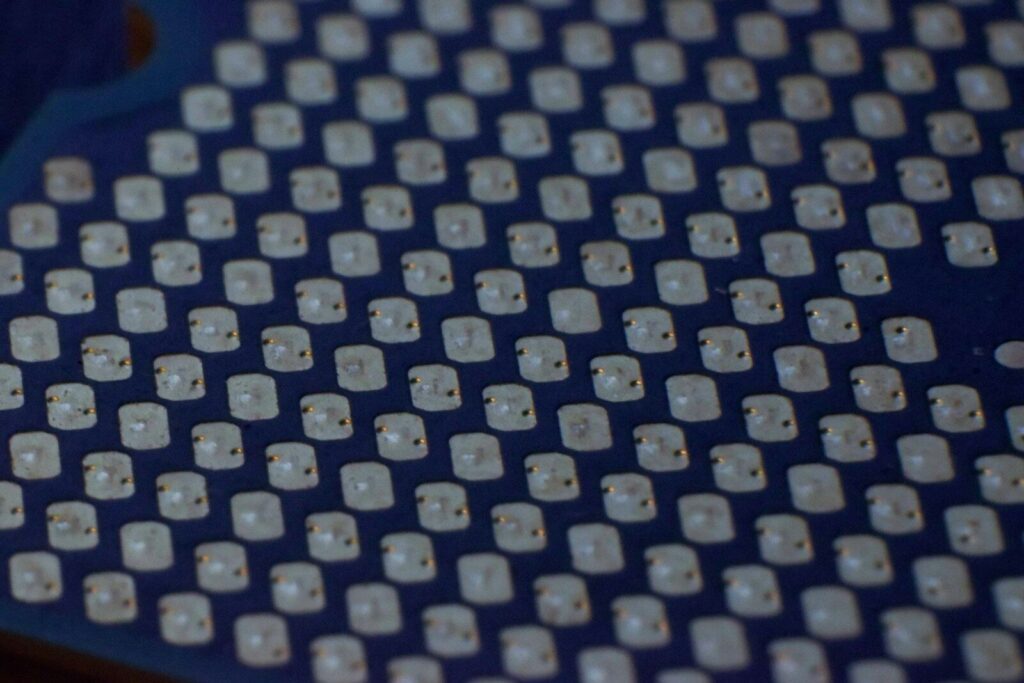

| Layer | What it does | Common materials |
| Substrate (core) | Holds the board rigid, insulates conductors | Woven glass fiber with epoxy resin, polyimide, ceramic, aluminum |
| Prepreg | Bonds cores together and sets dielectric spacing | Partially cured resin in the same family as the core |
| Copper foil | Carries signals and power | Electrodeposited or rolled copper, typically 0.5 oz to 3 oz |
| Solder mask | Protects traces, stops solder bridging | Liquid photoimageable epoxy |
| Surface finish | Keeps pads solderable, controls shelf life | Hot air solder leveling, immersion silver or tin, electroless nickel immersion gold, hard gold |
Thickness is the other variable. Rigid laminates come in steps from about 0.4 mm to 3.2 mm, and copper weight runs from 0.5 oz on fine-pitch digital boards to 3 oz and beyond on power boards. Both change the drill schedule and the lamination cycle, so they belong in the material conversation rather than in a later process note.
The substrate, the copper, and the bonding layers
The glass-reinforced epoxy most boards use carries the designation FR-4, where FR stands for flame retardant and the material meets the UL 94 V-0 flammability rating. Woven glass cloth supplies mechanical strength while the epoxy resin holds the structure together and provides insulation. Copper is laminated onto that core under heat and pressure, then etched into traces.
Prepreg is the layer buyers forget. It is the same resin in a partially cured state, and it flows during lamination to bond the cores. Its resin content and glass weave control the finished dielectric thickness, so it shapes impedance as much as the core does.
How laminates are classified
Copper clad laminate, usually shortened to CCL, is sorted along four axes:
- Reinforcement: paper, woven glass cloth, or composite material
- Resin system: epoxy, multifunctional epoxy, polyimide, BT, or PTFE
- Flammability: UL 94 V-0 rated or the non-rated HB grade
- Performance tier: ordinary, low dielectric constant, high heat resistance, or low coefficient of thermal expansion
Most quotes that mention a material upgrade are really moving along the third and fourth axes, from a general-purpose grade to a heat-resistant or low-loss one.
Material properties that decide board performance
Six properties screen most candidates: glass transition temperature (Tg), decomposition temperature (Td), coefficient of thermal expansion (CTE), dielectric constant (Dk), dissipation factor (Df), and thermal conductivity. Moisture absorption and CAF resistance matter too, though they usually confirm a decision the first six have already made.
| Property | Unit | What it controls | Typical published range |
| Tg | °C | Softening point, number of reflow cycles the board tolerates | 130 to 140 for standard FR-4, 150 to 180 for high-Tg grades, and about 250 for polyimide. |
| Td | °C | Onset of thermal decomposition | 310 to 330 for standard FR-4, 350 to 380 for high-Tg grades |
| CTE, z-axis | ppm/°C | Barrel cracking and annular ring integrity during thermal cycling | 45 to 55 for FR-4, 20 to 25 for metal-core structures |
| Dk | Dimensionless | Trace width for a target impedance, signal velocity | 4.4 to 4.7 standard, 3.8 to 4.0 low loss, near 2.2 for PTFE |
| Df | Dimensionless | Insertion loss at high frequency | 0.018 to 0.022 standard, 0.008 to 0.012 low loss, below 0.002 for PTFE |
| Thermal conductivity | W/mK | Heat spreading away from hot components | About 0.3 for FR-4, around 200 through an aluminum base, 20 to 30 for alumina, and 170 to 200 for aluminum nitride. |
Values shift with frequency, resin content, and supplier, so treat the table as a screening tool and confirm against the datasheet of the exact grade quoted.
Thermal properties
Tg marks are where a laminate stops behaving like rigid glass and starts to soften. Lead-free reflow peaks between 245°C and 260°C, so any board that sits near or above its Tg during assembly can warp, delaminate, or pull a via barrel out of alignment. A practical floor for new designs is Tg of at least 150°C. More reflow cycles, thicker copper, or a large board area pushes the requirement higher.
Td describes where the material begins to break down, measured by weight loss rather than mechanical change. High-Tg grades also raise Td, which widens the process window during lamination and rework. Time-to-delamination tests at fixed temperatures give a clearer picture of endurance than Tg alone on boards that see repeated thermal excursions.
Electrical properties
Dk ties geometry to impedance: for a fixed stackup, a higher Dk means narrower traces for the same target. It also changes with frequency, and materials with a flatter Dk curve hold impedance more predictably across a band. Df converts into insertion loss, so it matters most at high data rates. Copper surface roughness adds loss on top of the dielectric contribution, which is why foil choice and Dk both appear in high-speed stackup reviews.
Mechanical and environmental properties
Moisture absorption affects Dk, dimensional stability, and long-term insulation resistance. CAF resistance describes how well a laminate holds off conductive anodic filament growth between plated holes under bias and humidity, a failure mode that surfaces years into service on tight-pitch designs. Flexural strength, peel strength, and hardness round out the picture for boards that face vibration or handling.
PCB material types and where each one fits
Standard FR-4 covers the majority of industrial and consumer work. High-Tg FR-4, polyimide, metal-core, ceramic, and low-loss laminates each solve one specific problem, and each should be selected only when that problem exists, because every step up narrows the process window and adds cost.
| Material family | Typical Tg | Dk at 1 GHz | DF at 1 GHz | Cost band | Where it fits |
| Standard FR-4 | 130 to 140°C | 4.4 to 4.7 | 0.018 to 0.022 | Lowest | Consumer devices, simple control boards |
| High-Tg FR-4 | 150 to 180°C | 4.3 to 4.6 | 0.016 to 0.019 | Low to mid | Lead-free assembly, automotive, thick copper, many-layer boards |
| Low-loss FR-4 and modified epoxy | 180 to 200°C | 3.8 to 4.0 | 0.008 to 0.012 | Mid to high | 10G to 25G digital, servers, backplanes |
| Polyimide | About 250°C | 3.7 to 4.0 | 0.013 to 0.018 | High | Flex and rigid-flex, high-temperature service |
| Metal core | Not applicable | 3.5 to 4.5 | Not applicable | Mid | LED lighting, power conversion, motor drives |
| Ceramic | Not applicable | 7 to 10 | Low | High | Power modules, RF, harsh environments |
| PTFE and microwave laminates | Not applicable | 2.2 to 3.0 | 0.0009 to 0.002 | Highest | mmWave, radar, satellite links |
Standard and high-Tg FR-4
The move from standard to high-Tg FR-4 is the most common material change in production, and it is almost always driven by assembly rather than operation. Multiple lead-free reflow passes, heavy copper that holds heat, or a board thick enough to resist even heating will all argue for the higher grade. The electrical gain is modest, so a low-frequency board should not be upgraded for electrical reasons alone.
Polyimide and flexible substrates
Polyimide handles temperatures rigid epoxy cannot, and it bends. That combination makes it the default for flexible and rigid-flex designs, where the circuit folds into an enclosure or survives repeated movement. It costs more and demands different drilling and coverlay processes, so it is rarely the right answer for a board that simply runs warm.
Metal core and ceramic substrates
Metal-core boards replace the rigid dielectric with an aluminum or copper base under a thin dielectric layer, which moves heat sideways and into a heatsink far faster than FR-4 can. Aluminum wins on cost, while copper suits higher thermal loads and better dimensional stability. Ceramic substrates go further still, with alumina balancing cost against conductivity and aluminum nitride reaching much higher conductivity at a price. Ceramic also brings low dielectric loss, which suits RF and microwave work. Substrate grades differ enough in dielectric constant and thermal expansion that comparing values before committing pays off, and the ceramic PCB factory substrate supply page lists those figures alongside the available metallization options.
High-frequency and low-loss laminates
Loss behavior is the clearest way to sort high-frequency materials:
- Normal loss: FR-4 grades suitable up to a few GHz
- Medium loss: flatter Dk curves, roughly half the loss, workable to about 10 GHz
- Low loss: suitable for high-speed digital and RF up to roughly 60 GHz
- Very low loss: microwave and mmWave designs reaching 100 GHz and beyond
Hybrid stackups are standard practice here. Using a low-loss laminate on the critical signal layers and FR-4 everywhere else keeps most of the benefit at a fraction of an all-specialty build, provided the fabricator can control lamination of mixed materials.
How material choice changes cost and lead time
Material drives cost through the laminate price and through the process changes it forces. Specialty laminates are priced per square meter of the affected layers rather than per board, and they often come with minimum order quantities, longer procurement cycles, and tighter process windows.
Four levers decide most of the difference:
- Material family: each step up the ladder from standard FR-4 to low loss and then to microwave grades raises the price of every layer it touches
- Thickness and copper weight: heavier copper extends etching and plating time, and non-standard thicknesses may need to be ordered rather than pulled from stock
- Hybrid construction: mixing materials in one stackup adds setup and alignment work even when it lowers the material bill
- Availability: laminates are held in local stock quickly, while specialty grades may carry lead times measured in weeks
When comparing quotes, ask for the premium on the affected layers rather than a single board price, and ask which layers it applies to. That stops a hybrid stackup from being priced as though every layer used the most expensive material.
Design rules that follow from your material choice
Once the laminate is fixed, several design rules tighten with it. Impedance targets translate into specific trace widths through Dk, high-Tg materials need more annular rings for a given Z-axis expansion, and low-loss materials tolerate less variation in trace geometry.
- Stackup and dielectric thickness: pick core and prepreg combinations that hit the impedance target with standard drill sizes
- Impedance control: check trace width and spacing against the Dk of the quoted grade at the frequencies the board actually runs
- Drill and annular ring: allow for z-axis expansion during reflow, especially on high-Tg and thick boards
- Surface finish: match it to the assembly process, since fine-pitch parts need a flat pad and press-fit connectors need a harder surface
- Assembly limits: confirm how many rework cycles the laminate can take before the pad or barrel is compromised
How to specify PCB material in an RFQ
Write the material requirement by specification class, not by a single product name. State the standard the laminate must meet, the properties that cannot be traded, and which layers may fall back to a lower grade.
IPC-4101, the specification for base materials for rigid and multilayer printed boards, provides the slash sheet system that fabricators and laminate suppliers both work from. A slash sheet such as /99 calls for epoxy-based material with Tg of at least 150°C and Td of at least 325°C, while /126 raises those thresholds to 170°C and 340°C. Referencing the class instead of one supplier’s trade name keeps the requirement open to equivalent materials.
An RFQ that comes back accurately usually includes:
- Gerber data and the intended stackup
- Impedance targets with the frequency band they apply to
- Maximum operating temperature and expected thermal cycles
- Assembly process, including reflow type and expected rework
- Certification requirements for the finished board
- Annual volume, order pattern, and target lead time
- Whether substitution is allowed and which properties must stay unchanged
FAQ
Can a board use standard FR-4 and still pass lead-free assembly?
It can, if the assembly profile stays inside the material’s limits. Standard FR-4 with Tg around 130 to 140°C leaves little margin at a reflow peak of 245 to 260°C, so the outcome depends on board thickness, copper distribution, and the number of passes. Many fabricators recommend a Tg of at least 150°C for new lead-free designs, which lands the board in the mid-Tg or high-Tg range.
Is halogen-free material required for Europe-bound products?
Not universally. The restriction of hazardous substances directive limits specific substances rather than halogen content as a category, and halogen-free laminate is a separate requirement that some customers and product categories impose on top of it. If a halogen-free grade is mandatory, say so in the RFQ, because the change alters the resin system and can shift both Dk and the process window.
What happens if the quoted material is substituted after approval?
It depends on what the substitute changes. A drop-in replacement with equal or better Tg, Td, Dk, and Df may clear review with documentation, while a change in Dk alters impedance and usually forces a stackup revision. Put a substitution clause in the RFQ that names the properties that cannot change, and ask for written confirmation of the grade actually used before the board’s ship.
