Most printed circuit board projects do not fail because the schematic was wrong. They fail because the board was drawn in a way no fabricator or assembly line could build at a workable yield. Layout is where design intent becomes copper and where unit cost gets fixed, especially in demanding work such asĀ high-speed PCB design manufacturing.
PCB layout is the process of turning a schematic into the physical arrangement of a printed circuit board (PCB): component placement, copper routing, layer stack-up, planes, and the fabrication and assembly files a manufacturer needs to build it. A layout is judged on four things: whether the circuit works at speed, whether it survives heat and vibration, whether it can be built at a workable yield, and whether the data package is complete enough to quote without guesswork.
The sections below cover what a layout contains, how the process runs from netlist to release, and how layout choices change what you pay.

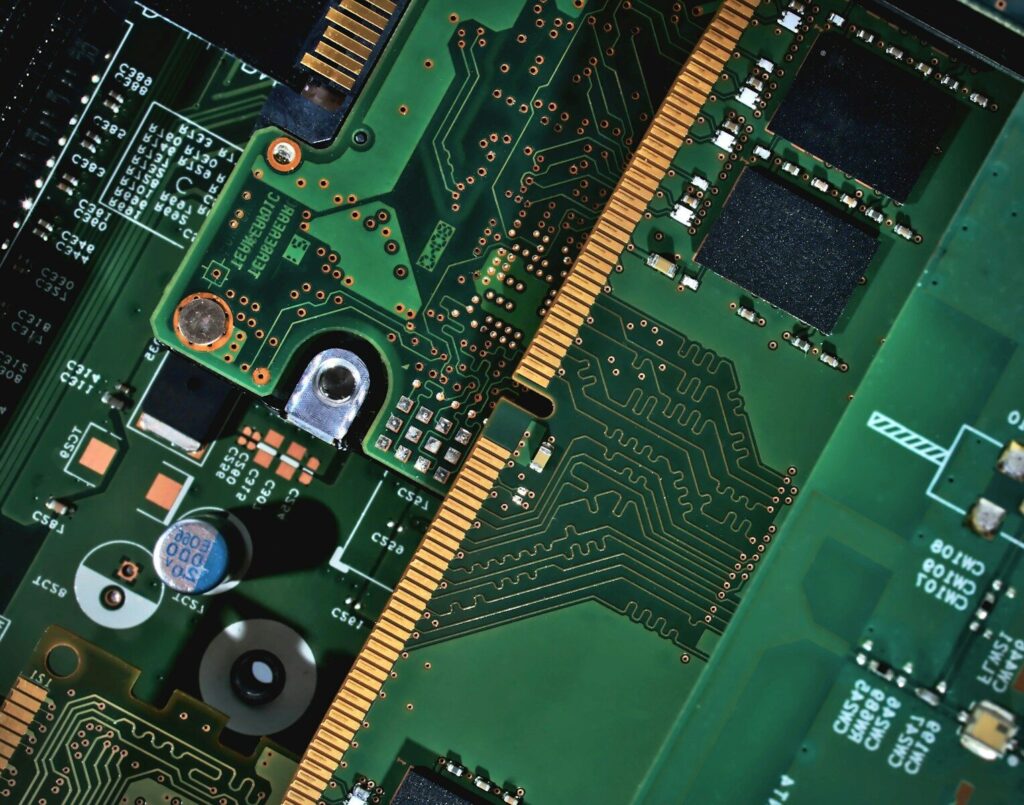

What is PCB layout?
PCB layout, often referred to as PCB layout design, is the physical design step that follows schematic capture. It converts a logical netlist into copper geometry: pads, traces, vias, ground and power planes, solder mask openings, silkscreen, and board outline, arranged to satisfy the electrical, thermal, mechanical, and manufacturing rules the product has to meet.
A schematic states what connects to what. It says nothing about how long a connection is, how wide, or what reference plane sits beneath it. Once a driver’s rise time gets short enough, a net that looks like a line on a page behaves like a transmission line.
Layout, schematic, and printed circuit board design are not the same job.
- Printed circuit board design covers the whole chain: schematic capture, part selection, layout, verification, and release to fabrication.
- Schematic capture defines logic and connectivity, with no physical dimensions attached.
- PCB layout is the geometry step inside that chain, and PCB assembly mounts components on the finished bare board.
What a finished layout package contains
| Output | What it defines | Who uses it? |
|---|---|---|
| Gerber or ODB++ data | Copper, mask, and silkscreen per layer | Fabricator |
| Drill file | Hole sizes and positions | Fabricator |
| Stack-up drawing | Layer order, dielectric thickness, impedance targets | Fabricator, engineer |
| Pick and place file | Reference, position, and rotation of each part | Assembly house |
| Bill of materials | Values, packages, approved part numbers | Assembly house, purchasing |
| Fabrication notes | Surface finish, thickness, tolerances, panelization | Fabricator |
When one of these is missing or contradicts another, the build stops.
Why layout decides whether a board works and what it costs
Layout fixes the electrical behavior of a board and the price of building it at the same time. Two layouts with the same schematic and the same bill of materials can differ by layer count, via count, and special process work, and a printed circuit board manufacturer prices the data you send rather than the design you intended.
Return paths and signal integrity
Signals travel as current loops: out along a trace, back through the reference plane below it. If the trace crosses a gap in that plane, the return current detours, which enlarges the loop area and adds both radiation and crosstalk.
Thermal and mechanical limits
Heat leaves a component through copper, not through air, so parts with thermal pads need copper areas and thermal vias beneath them. Mounting holes, connector positions, and enclosure height arrive from the mechanical drawing, and layout is where they either fit or do not.
Where layout choices show up in a quote
Fabricators and assembly houses price process steps, not just board area.
| Design choice | Process consequence | Direction of cost |
|---|---|---|
| Higher layer count | More lamination and drilling steps | Up |
| Tighter trace and space | Lower imaging yield | Up |
| Smaller drilled holes | Higher plating aspect ratio, more risk | Up |
| Blind, buried, or filled vias | Extra drilling and filling operations | Up |
| Panel-friendly outline and panelization | Better material utilization | Down |
No number holds across shops, since quotes depend on volume, tolerance class, and schedule. Layout is the last cheap moment to remove cost.
The PCB layout design process, from netlist to release
A predictable layout follows a fixed order: verify the netlist and footprints, define the stack-up, place the components, route the board, check it with DRC and a DFM review, then release the fabrication and assembly package. Skipping the early steps to start routing sooner is the most common reason a board needs a second revision.
Step 1: Verify the netlist and lock the footprints.
Run an electrical rule check before anything moves, and confirm that every symbol maps to a footprint matching the physical package. Footprint errors look correct in the editor and only appear when a part will not sit flat.
Step 2: Define the stack-up and printed circuit board material.
Layer count follows reference plane and routing needs rather than habit, and a design with a fast interface plus a switching supply usually needs a solid ground plane, which means four layers or more. The stack-up also sets the printed circuit board material: standard FR-4 covers most products, while high-frequency work needs a different dielectric constant or loss tangent. Because impedance targets come from layer geometry, the stack-up should be agreed upon with the fabricator before routing starts. Flexible and rigid-flex boards add rules of their own, which is why that work is usually handled as a separate process by aĀ rigid-flex PCB manufacturer supplier.
Step 3: Place components before routing.
Placement decides how much routing a board needs, and routing decides how many layers it takes. Start with parts whose position mechanics are already fixed, then place critical ICs so the buses between them stay short.
Step 4: Route, then verify with DRC
Route in order of consequence: clocks and differential pairs first, then power and ground sized to current, then general signals. Use 45-degree corners rather than right angles. DRC catches geometry that breaks a rule you wrote, but not a layout that is geometrically legal and electrically wrong.
Step 5: Release fabrication and assembly data
Generate Gerbers or ODB++, the drill file, the pick and place file, and fabrication notes, then read the package as a reviewer would. This handoff is where a design becomes a purchase order.
PCB layout guidelines that hold up in production
The guidelines that matter most are the ones tied to a process limit: trace width and spacing, via and annular ring geometry, continuous reference planes, controlled impedance where an interface demands it, and clean tooling and panelization near the edges.
Trace width, spacing, and current
Trace width carries current and helps set impedance on controlled nets. Current capacity depends on copper weight, temperature rise, and surrounding copper, which is why IPC-2152 exists as the reference for current-carrying capacity. A common convention keeps the centers of adjacent parallel traces at least three times the trace width apart, usually called the 3W rule.
Vias, aspect ratio, and annular rings
Vias cost money, add inductance, and leave a stub on high-speed nets, so use the smallest number that finishes the route. Aspect ratio is board thickness divided by drilled hole diameter, and plating gets harder as that ratio climbs. The annular ring is the copper around the hole, where a small ring saves space but eats into registration tolerance. The IPC-2221C generic standard covers conductor spacing, annular ring minimums, and hole sizes (IPC-2221C).

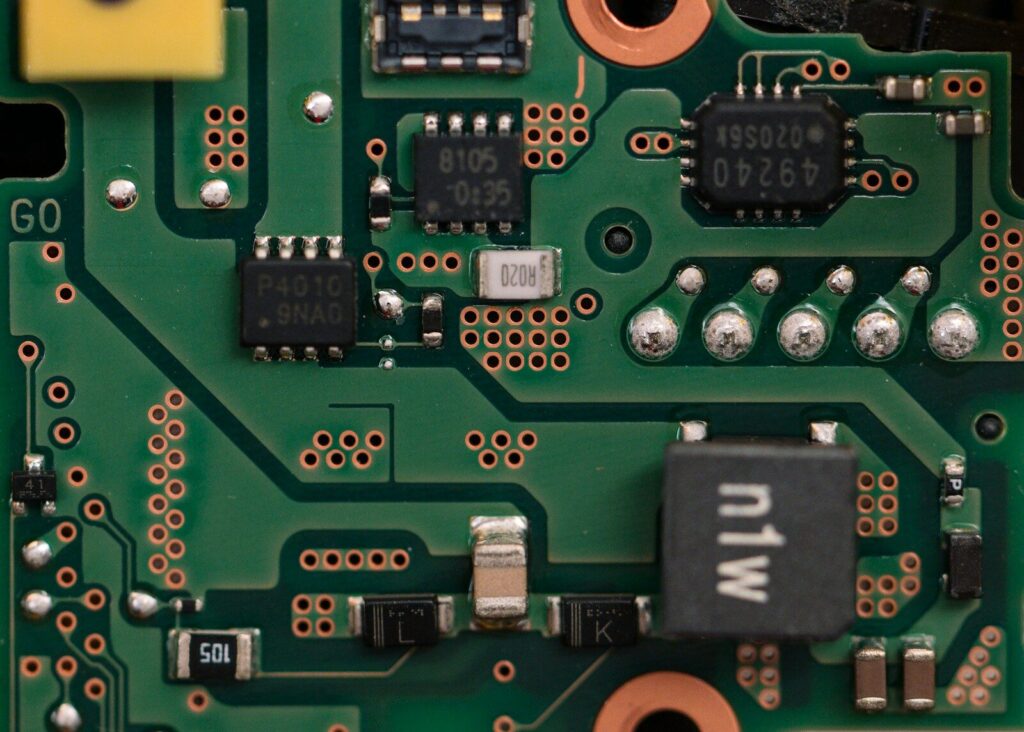

Ground and power planes and decoupling
A continuous ground plane is the cheapest signal integrity tool available and doubles as a thermal spreader. Connect every piece of ground copper to it, since an isolated island radiates instead of shielding, and place decoupling capacitors early so the loop between a pin and its supply stays short.
Controlled impedance and differential pairs
Impedance comes from trace width, dielectric thickness, and the distance to the reference plane. Differential pairs need matched length, constant spacing, and a continuous plane beneath both lines, with vias kept low in number and placed symmetrically.
Silkscreen, solder mask, tooling, and panelization
Silkscreen should stay off pads and test points. At the board edge, leave a tooling strip and keep components clear of the panel break line, because a part placed too close to a V-cut can crack during depaneling.
PCB layout software: what the options actually cover
Layout software divides into three groups: free or low-cost entry tools for simple boards, constraint-driven professional suites for multi-layer and high-speed work, and browser-based tools for small designs. What matters in production is the constraint engine, the library system, and the accuracy of the manufacturing output.
Entry-level and open-source tools
Free tools are capable on two- and four-layer boards of moderate density, but their limits show up where a project needs a real constraint manager, tight library control, or simulation.
Constraint-driven professional suites
Professional tools treat rules as rules. Clearance, width, length matching, and impedance constraints are entered per net class and enforced while you route, which catches errors at the keyboard instead of at the assembly line.
PCB layout online tools and their limits
Browser-based tools suit rapid prototypes and boards with few nets, but they usually cap layer count, board size, or library access. A tool that locks a design to one fabricator becomes a business risk once the product has to be second-sourced.
Doing layout in-house versus buying PCB layout services
Keep the layout in-house when a dedicated layout engineer is available; the design changes often, and the boards are simple enough to route inside the fabricator’s published limits. Buy PCB layout services when the board is dense, carries controlled impedance, or has a schedule internal staff cannot cover.
The layout engineer role
A PCB layout engineer reads schematics, maintains footprint libraries, agrees on the stack-up, places and routes, runs DRC and DFM checks, and produces the release package. The person doing that work decides how much of your cost structure is fixed.
What to send with a layout request
- The schematic, with part numbers and net classes marked
- The mechanical drawing, including mounting holes, connector access, and height limits
- The target stack-up or impedance requirements
- The fabricator’s capability sheet, if one is already chosen
- Current levels for power nets and any isolation requirements
- Expected volumes, target schedule, and documentation requirements
Missing items get resolved by assumption, and assumptions become engineering changes.
Cost and schedule drivers
Layout is priced on complexity and turnaround. Complexity tracks net count, layer count, package density, controlled impedance interfaces, and how tightly mechanics constrain the outline. A compressed schedule adds review time, so ask for the assumptions behind any quote.
Common layout mistakes that cause respins
Most respins come from a short list of recurring errors. Analog and digital sections mixed without separation, fast nets crossing a plane split, copper islands left unconnected, vias placed inside pads, and a clean DRC report treated as proof of manufacturability account for a large share of second revisions.
- Mixed analog and digital grounding with no plan for where the two meet
- High-speed routes crossing a split in the reference plane
- Copper pours are never assigned to a net, leaving floating islands
- Vias placed inside component pads without filling and capping
- Design rule check passed, DFM never checked, and the first article fails
Every item is visible in a review before the data leaves the design team, and a checklist review costs far less than a respin.
FAQ
Do I need a two-layer or a four-layer layout?
Layer count is driven by reference planes and routing density. Two layers can carry a simple product, but a fast interface, a switching regulator, or a component count that forces long return paths makes four layers the practical starting point. The extra laminate cost is normally offset by a smaller board and fewer assembly risks.
Can a layout be produced from a schematic and a mechanical drawing only?
Yes, and that is how many outsourcing projects begin. The layout team still needs net classes, current levels, impedance targets, connector pinouts, and any keep-out areas the drawing does not show. Dimensions taken from a hand sketch or a photograph have to be verified before they enter fabrication data.
What happens if the layout fails the manufacturer’s DFM review?
The fabricator returns a DFM report listing issues and ranking them by whether they block the build. Many are resolved in the data by moving a via, widening a space, or adjusting panelization. Others need a placement or layer change, which is why requesting the check while the design is still in layout saves boards.
